Columnar Databases: Architecture, Performance, Use Cases, and Strategic Alternatives

Columnar databases represent a specialized database architecture fundamentally optimized for analytical processing, distinguishing themselves from traditional row-oriented systems. Their design, which stores data by columns rather than by rows, is a critical enabler for modern data warehousing, business intelligence, and real-time analytics due to their superior read performance and highly effective data compression. This report elucidates the core principles behind their efficiency, provides a detailed comparison with row-oriented databases, outlines their primary applications, and addresses their inherent trade-offs, particularly concerning write-heavy transactional workloads. The analysis underscores that selecting the appropriate database system is contingent upon specific application requirements. Ultimately, columnar databases have become a cornerstone of scalable, cost-effective data analytics in the era of big data, facilitating deeper and more timely business intelligence.

Introduction to Columnar Databases

Definition and Fundamental Concept of Columnar Storage

A columnar database, often referred to as a column-oriented database, employs a distinct data storage paradigm where data is organized and stored by columns rather than by rows. This means that all values for a particular attribute (column) are stored contiguously on disk. This approach contrasts sharply with traditional row-oriented databases, which store each complete record—comprising all its fields—in one or more contiguous blocks.

To illustrate this fundamental difference, consider a simple table containing customer data with columns such as CustomerID, Name, Age, and City. In a row-oriented database, the data for CustomerID 1, Alice, 30, NY would be stored together as a single block. Conversely, in a column-oriented database, all CustomerID values would be stored together, followed by all Name values, then all Age values, and so on. This physical organization forms the bedrock of their efficiency, particularly for analytical workloads.

Historical Context and Evolution in the Big Data Era

The prominence of columnar storage began to significantly increase in the late 2000s, coinciding with the burgeoning era of big data. During this period, traditional relational databases, while highly effective for Online Transaction Processing (OLTP) applications, began to encounter performance bottlenecks when confronted with the immense volumes of data and the escalating complexity of analytical queries. The sheer scale of data and the need for sophisticated analytical processing exposed limitations in existing row-oriented architectures, creating a pronounced demand for a new storage paradigm capable of handling these challenges efficiently.

This period saw the emergence of columnar databases as a tailored solution, specifically optimized for read-heavy analytical workloads. Their development addressed the growing need for rapid data retrieval and analysis over vast datasets, which was becoming increasingly vital for corporate decision-making. Consequently, columnar databases have been described as "the future of business intelligence (BI)". This characterization is not merely a definitional statement but rather a strong indicator of a strategic evolution within the domain of business intelligence. The very nature of BI was shifting from simple reporting to complex, real-time analytics on massive datasets, necessitating a fundamental change in how data was stored and accessed. Columnar databases, therefore, became not just a technical improvement but a crucial enabler for more sophisticated and timely business insights, directly influencing the efficacy of corporate strategic planning.

Core Principles and Architectural Foundations

The architectural design of columnar databases is predicated on several core principles that collectively drive their exceptional performance for analytical workloads.

Detailed Explanation of Columnar Data Storage

At the heart of a columnar database is its approach to data storage, where each column is stored as a contiguous block of data. This physical organization has profound implications for performance, particularly in analytical processing, as it allows for highly optimized data access patterns.

Key Principles Driving Performance

Several key principles contribute to the performance advantages of columnar databases:

• Data Homogeneity and Compression: A significant benefit of columnar storage is that each column typically contains data of the same type (e.g., all integers, all strings, all dates). This inherent homogeneity facilitates the application of highly effective compression algorithms. Compression not only reduces the amount of storage space required but also significantly speeds up data retrieval by minimizing the volume of data that needs to be read from disk. This interconnectedness demonstrates a deliberate architectural design where homogeneity enables superior compression, which in turn reduces I/O, leading to improved query performance.

• Late Materialization: Columnar databases frequently employ a technique known as late materialization. This principle dictates that the system delays combining columns into a complete dataset until it is absolutely necessary for query processing. By operating on only the required columns for as long as possible, the system minimizes unnecessary data movement and significantly enhances performance, especially for queries that only access a subset of columns.

• Vectorized Query Execution: Many columnar databases are engineered to support vectorized query execution. This involves performing operations on multiple data points simultaneously, processing "vectors" or chunks of data at once rather than one row at a time. This approach takes advantage of modern Central Processing Unit (CPU) vector instructions, such as Single Instruction, Multiple Data (SIMD) operations, leading to more efficient utilization of CPU cycles and dramatically faster query processing. The columnar data layout aligns perfectly with modern CPU architectures, enabling these highly efficient operations.

• Efficient Caching and I/O: The contiguous storage of column data allows columnar databases to utilize cache memory with high efficiency. When a piece of data is fetched from storage, adjacent data within the same column (which is highly likely to be used soon) is also fetched into the cache, reducing the number of Input/Output (I/O) operations required. Furthermore, columnar databases can significantly reduce I/O by selectively reading only the columns relevant to a query, effectively skipping vast amounts of irrelevant data. This design choice reflects a deep understanding of hardware characteristics, where optimizing for CPU cache usage and minimizing physical disk reads are paramount for performance. The design exploits the physical characteristics and performance bottlenecks of modern computing hardware. By aligning data layout with CPU cache lines and leveraging SIMD instructions, these databases bridge the gap between software algorithms and hardware capabilities, leading to performance gains that often surpass those achievable by traditional row-oriented systems without such profound hardware awareness.

• Partitioning and Sharding: To manage and scale large datasets, columnar databases often incorporate data partitioning and sharding strategies. Partitioning involves dividing a table into smaller, more manageable pieces, while sharding distributes these data pieces across multiple servers. These strategies collectively enhance query performance and overall system scalability, allowing the database to handle petabyte-scale data volumes effectively.

These core principles are not independent features but form a highly synergistic system. Data homogeneity enables superior compression, which in turn reduces the amount of data that needs to be read from disk, directly impacting I/O efficiency and query speed. Vectorized execution leverages this contiguous, homogeneous data layout to maximize CPU cache usage and perform operations on large chunks of data, further accelerating processing. Late materialization minimizes data movement by deferring row reconstruction until absolutely necessary. This interconnectedness highlights a deliberate architectural design where each principle amplifies the others, leading to a profound optimization for analytical workloads, rather than merely being a collection of individual features.

Performance Advantages: Read Optimization and Data Compression

Columnar databases are specifically engineered for read-heavy analytical workloads, a characteristic that defines their primary performance advantages.

How Columnar Storage Optimizes for Read-Heavy Analytical Queries

The optimization for analytical queries stems from several key mechanisms:

• Reduced I/O Operations: A primary advantage of columnar databases is their ability to significantly reduce I/O operations. When executing analytical queries that only require specific data columns, the database only needs to access and read those relevant columns, effectively ignoring vast amounts of irrelevant data stored in other columns. For example, in a query such as

  SELECT AVG(salary) FROM employees WHERE department = 'Sales', a columnar database would only need to read the salary and department columns, potentially skipping dozens or hundreds of other columns in a wide table. This selective column access drastically speeds up data access by minimizing the data loaded from disk.

• Faster Query Performance: This reduction in I/O and selective retrieval directly translates into significantly faster query execution, especially for complex analytical queries and aggregation functions performed on large datasets. The architecture is specifically optimized for data reads over writes, making it the preferred choice for data warehousing and Online Analytical Processing (OLAP) applications where quick analytics on sizable datasets are crucial.

• CPU Cache Utilization and SIMD Operations: The columnar data layout naturally aligns with modern CPU architectures, allowing for improved CPU cache performance. By populating cache lines with homogeneous, relevant data, columnar databases enable efficient vectorized processing and Single Instruction, Multiple Data (SIMD) operations. This maximizes CPU cache usage and allows for simultaneous operations on large chunks of a single column, dramatically speeding up calculations.

In-depth Discussion of Data Compression Techniques and Their Benefits

Columnar storage is particularly well-suited for data compression due to the inherent homogeneity of data within a single column. This makes it "perfect for data compression" because identical or similar values are often adjacent, allowing for high compression ratios.

Several specific compression techniques are commonly leveraged:

• Dictionary Encoding: This technique replaces repeated string values with shorter integer IDs, significantly reducing storage for columns with low cardinality (i.e., a limited number of unique values). For example, "USA" might be replaced with the integer 1 and "CAN" with 2.

• Run-Length Encoding (RLE): RLE compresses sequences of repeated values by storing the value and its count. For instance, a sequence like "AAAABBBCC" could be compressed to "(A,4)(B,3)(C,2)". This technique is particularly effective for columns exhibiting long runs of repeated values.

• Bit Packing: This method uses the minimum number of bits required to represent integers within a given range, which is especially effective for columns with a limited range of values.

• Delta Encoding: This technique stores the difference between adjacent values in a column, rather than the actual values. It is particularly useful for columns with sequential data, such as dates or timestamps.

• General-Purpose Compression: After these specialized encodings, general-purpose compression algorithms like ZSTD, LZ4, and GZIP are often applied for further compression, maximizing storage efficiency.

The benefits of compression extend beyond simply saving storage space. Less data on disk translates directly to reduced I/O, which in turn accelerates queries and data insertions. While the decompression process introduces some CPU overhead, the substantial I/O reduction typically far outweighs this cost, especially in I/O-bound analytical workloads. This careful balancing act between decompression overhead and I/O reduction demonstrates a calculated trade-off favoring analytical performance.

A notable implication of this efficiency is observed in cloud environments. Cloud data warehouses, such as Google BigQuery, often charge users based on the amount of data read per query. Since columnar systems inherently read less data due to their selective access and superior compression, they directly reduce query costs in these usage-based billing models. This highlights a critical economic advantage, demonstrating how the architectural benefit of reduced I/O translates into tangible financial savings for organizations, extending the impact beyond raw technical performance metrics to broader cloud economics and budgeting for data teams.

Columnar vs. Row-Oriented Databases: A Comparative Analysis

The fundamental difference in data organization between columnar and row-oriented databases leads to distinct performance characteristics and suitability for different types of workloads.

Detailed Comparison of Architectural Differences

The core distinction lies in how data is physically stored. Row-oriented databases store data sequentially by row, meaning all values for a given record are stored together in contiguous blocks. Conversely, column-oriented databases store data sequentially by column, grouping all values for a specific attribute together.

This architectural divergence has profound implications for data access. Row-oriented databases are optimized for quick retrieval of entire rows, as all data for a record is co-located. In contrast, columnar databases excel at quick retrieval of specific columns, as only the necessary data blocks need to be accessed.

Implications for Data Storage and Retrieval Efficiency

• Read Workloads: Columnar databases are highly efficient for analytical queries (OLAP) that scan a few columns across many rows, such as aggregations or filters. Their ability to read only relevant columns significantly reduces I/O. Row-oriented databases can be slower for such tasks because they often retrieve entire rows unnecessarily, even when only a few columns are needed.

• Write Workloads: Row-oriented databases demonstrate superior efficiency for transactional workloads (OLTP) characterized by frequent inserts, updates, and deletes of individual records. A single operation can write an entire row, making these operations very fast. Columnar databases, however, are less efficient for these tasks. Inserting a new record requires writing each field to its proper column one at a time, consuming more computing resources. Updates often necessitate modifying multiple locations across different columns, which can be slow and may lead to lower consistency during the write process, although data eventually becomes consistent.

• Compression: Columnar databases achieve significantly higher compression ratios due to the homogeneity of data within each column, allowing for more effective application of compression algorithms. In contrast, row-oriented databases exhibit lower compression efficiency because rows contain mixed data types, making it harder to apply specialized compression techniques effectively.

• Schema Flexibility: Row-oriented databases are generally more flexible when it comes to schema changes, as modifications often affect only the metadata of a row. Columnar databases can be less flexible for schema changes, as alterations might necessitate modifications across multiple column files.

• High-Projectivity Queries (SELECT *): When a query requires retrieving all columns (a high-projectivity query), columnar databases can become less efficient. This is because the data must be reassembled from various separate column files, which can introduce overhead and diminish the performance advantages typically seen in analytical queries.

It is important to understand that no single database type offers universal superiority; rather, each is optimized for specific use cases. The assertion that columnar databases are "not magically more performant" in a holistic sense underscores that performance is contingent upon the workload. Choosing a database is about aligning its architectural strengths (e.g., optimized for OLAP reads) with the specific application requirements (e.g., OLTP writes versus OLAP reads). Misaligning the database type with the workload can lead to suboptimal performance, highlighting the importance of informed architectural decisions.

The clear delineation of strengths for OLTP (row-oriented) and OLAP (columnar) workloads has also led to an evolving trend in database design. The recommendation to "pair a row-oriented system... with a column store for different workloads" or to explore "HTAP (Hybrid Transactional/Analytical Processing) engines that combine both" indicates a move towards integrated solutions. This suggests that organizations are increasingly seeking systems capable of handling both transactional and analytical workloads simultaneously, without the overhead of complex data movement between separate systems. HTAP represents an evolution in database design, aiming to overcome the traditional OLTP/OLAP divide, driven by the growing need for real-time insights derived directly from operational data.

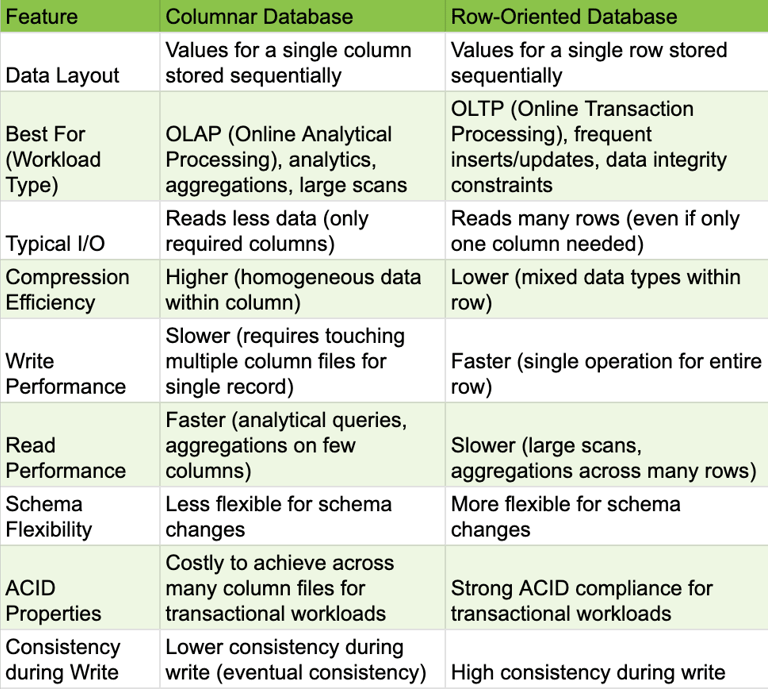

Columnar vs. Row-Oriented Databases: A Comparative Overview

This table provides a concise, side-by-side comparison of the fundamental differences and trade-offs between columnar and row-oriented database architectures. It serves as a quick reference for understanding their respective strengths and weaknesses, aiding in the initial selection of a database system based on primary workload requirements.

5. Primary Use Cases for Columnar Databases

Columnar databases excel in scenarios demanding fast, efficient access to large datasets, particularly where query performance and storage efficiency are critical. Their unique architecture makes them ideal for several data-intensive applications.

Data Warehousing & Business Intelligence (BI)

Columnar databases form the "foundation of modern data warehouses" and are considered a "smart choice for data warehouses". They are optimally suited for powering interactive dashboards, generating ad-hoc reports, and serving as the backbone for cloud data warehouses. Analysts frequently query a few columns across millions of rows, and operations involving aggregations (such as SUM, AVG, and COUNT) are common. The columnar storage model is highly efficient for these types of queries, significantly speeding up data analysis and reporting.

Real-Time Analytics

A growing number of columnar systems, including Apache Druid and ClickHouse, are specifically optimized for real-time or near-real-time data ingestion and querying. These databases enable sub-second queries on both streaming and batch data at scale. This capability is crucial for applications requiring immediate insights, such as monitoring systems, real-time user behavior analytics, and alerting mechanisms. The repeated emphasis on "real-time analytics" and "sub-second queries on streaming data" indicates a strong market demand for immediate insights. This highlights a critical trend where businesses require instant reactions to events and continuous intelligence, signifying a shift from traditional batch-oriented, historical analysis to continuous, event-driven intelligence, where low-latency analytics provides a significant competitive advantage.

Machine Learning Feature Stores

Columnar databases are increasingly utilized for machine learning feature stores. They facilitate the quick retrieval of single-column vectors, which is essential for efficient model training and data preprocessing tasks undertaken by data scientists. The columnar format allows individual columns to be independently transformed and encoded, streamlining the data preparation phase for machine learning workflows.

IoT & Time-Series Analytics

Columnar storage is exceptionally well-suited for handling Internet of Things (IoT) and time-series data, including logs, metrics, and financial records. In these applications, time is typically a key column used for filtering, and the sequential nature of values in time-series data allows for highly effective compression and delta encoding. The architecture enables efficient scans over specific columns, such as temperature, voltage, or GPS coordinates, across many rows, which is a common pattern in IoT and time-series data analysis.

While data warehousing and business intelligence are consistently highlighted as primary applications, the inclusion of machine learning feature stores and IoT & time-series analytics signifies a substantial expansion of columnar database applicability. This indicates an underlying trend where the core strengths of columnar storage—fast analytical queries, efficient compression, and the ability to handle large datasets—are increasingly recognized and leveraged in emerging, data-intensive domains beyond conventional business reporting. This suggests that columnar databases are becoming foundational infrastructure for advanced analytics and artificial intelligence/machine learning initiatives, driving innovation in new areas.

6. Limitations and When Not to Use Columnar Databases

Despite their significant advantages for analytical workloads, columnar databases possess certain limitations that render them unsuitable for every use case. Understanding these trade-offs is crucial for appropriate system selection.

Challenges with Write-Heavy Workloads (Inserts/Updates)

Columnar databases are inherently optimized for read-heavy operations, which means they are less efficient for applications characterized by frequent inserts, updates, and deletes of individual records. Inserting a new record into a columnar database requires writing each field to its proper column one at a time, consuming more computing resources compared to a single operation in a row-oriented database. Similarly, updates often necessitate modifying multiple locations in different columns, which can be a slow process. To mitigate these challenges, strategies such as batch writes and the use of staging tables can help alleviate the performance overhead associated with individual write operations.

Transaction Handling (ACID Properties) for OLTP

Achieving full ACID (Atomicity, Consistency, Isolation, Durability) properties across many separate column files can be costly and complex in columnar databases. Consequently, they are generally not suitable for Online Transaction Processing (OLTP) applications. OLTP systems are characterized by a high volume of frequent, small writes of individual rows and demand strong transactional consistency to maintain data integrity. For "hot operational data" that requires immediate and consistent updates, it is recommended to utilize a row-oriented database.

Inefficiencies with High-Projectivity Queries (SELECT *)

When a query requires retrieving all columns from a table (a "high-projectivity" query), the data must be reassembled from its various column files. This reassembly process can be inefficient and may diminish the performance advantages typically associated with columnar storage. To speed up these types of reports, techniques such as materialized views and denormalization can be employed.

Considerations for Small Datasets

For small datasets, the inherent overhead associated with compression and the specialized columnar architecture may outweigh the benefits of its design. In such cases, opting for lightweight row stores might be a more efficient and practical solution.

CPU Resource Consumption

Columnar databases may consume more CPU resources when processing data that is not naturally suited to their columnar storage, such as highly unstructured data.

The consistent and clear articulation of these limitations across various sources underscores a fundamental principle in database architecture: there is no single database type that is optimal for all workloads. The strengths of columnar databases for reads inherently lead to weaknesses for writes. This principle implies that database selection always involves a trade-off, necessitating a deep understanding of workload characteristics and the prioritization of specific performance goals.

Crucially, these limitations are often accompanied by well-established mitigation strategies. The provision of solutions such as batch writes, staging tables, the recommendation to use a row-oriented database for hot operational data, and the exploration of Hybrid Transactional/Analytical Processing (HTAP) engines indicates a mature ecosystem where challenges are understood and have led to the development of sophisticated architectural patterns. This suggests that while columnar databases have inherent limitations, these can often be overcome through strategic system design, which might involve combining different database types or leveraging advanced hybrid solutions, rather than being absolute blockers. This highlights the ongoing evolution of data architectures to handle diverse and complex requirements.

7. Leading Examples of Columnar Database Systems

The landscape of columnar database systems is diverse, encompassing both cloud-native managed services and self-hosted open-source options. The increasing prevalence of cloud providers offering columnar data warehouses reflects the significant demand for scalable, managed analytics solutions.

Overview of Popular Commercial and Open-Source Columnar Databases

The trend towards managed cloud services is pronounced, driven by the desire for ease of use, reduced operational overhead, flexible capacity, near-infinite scalability, and access to the latest technology without capital requirements for hardware. This highlights a broader industry shift towards consumption-based, serverless analytics, where the complexity of deploying, managing, and scaling columnar databases is increasingly abstracted away by cloud providers.

Examples and Notable Features

• Amazon Redshift: A leading cloud data warehouse from Amazon Web Services (AWS), designed for handling analytical workloads on big datasets by utilizing column-oriented DBMS principles. It is widely used for analyzing exabytes of data and running complex analytical queries without the need for managing underlying infrastructure. Notable features include sort keys, AQUA acceleration, and Spectrum for S3 data integration.

• Google Cloud BigQuery: A fully managed, serverless enterprise data warehouse renowned for its scalability, cost-effectiveness, and rapid processing of large datasets. It leverages Google's proprietary Capacitor format for ultra-fast scans. BigQuery seamlessly integrates with machine learning capabilities (BigQuery ML) and geospatial analysis.

• Snowflake Data Cloud: A multi-cloud data platform recognized for its multi-cluster compute architecture, zero-copy cloning, and robust data sharing capabilities. It offers high ease of use and exceptional scalability across various cloud environments.

• ClickHouse: An open-source, column-oriented DBMS specifically designed for fast real-time analytics. It is known for its high reliability, ease of use, and fault tolerance, capable of processing hundreds of millions to more than a billion rows and tens of gigabytes of data per single server per second.

• Apache Druid: A high-performance real-time analytics database specializing in delivering sub-second queries on both streaming and batch data at scale. It is versatile and designed for high performance, scalability, and consistency.

• Apache Kudu: An open-source distributed data storage engine engineered for fast analytics on constantly changing data. It organizes its data by column for efficient encoding and compression, using techniques like run-length encoding and vectorized bit-packing.

• MariaDB ColumnStore: An open-source column-based storage engine for MariaDB, which enables real-time analytics and delivers scalable analytics using standard SQL, while maintaining the benefits of the relational model.

• Apache HBase: A distributed, scalable, column-oriented NoSQL database built atop Hadoop's HDFS file system. It is optimized for read performance on massive datasets and provides linear and modular scalability.

• Other Enterprise Options: Other notable enterprise columnar options include OpenText Vertica, SAP HANA, and IBM Db2 Warehouse.

• Columnar Storage Formats: It is also important to distinguish between columnar databases and columnar storage formats. Apache Parquet and Apache ORC are widely used open-source columnar storage formats, not databases themselves. They are designed for efficient data storage and processing of large datasets within distributed computing environments like Apache Spark and Hadoop.

While this report differentiates columnar from relational databases, it is important to note that the storage paradigm is increasingly integrated into traditionally row-oriented relational databases. Examples include MariaDB's ColumnStore and SQL Server's clustered columnstore indexes. Furthermore, some systems categorized as "columnar," such as Apache HBase and Google Cloud Bigtable , are also classified as "wide-column NoSQL" databases. This indicates a nuanced reality where "columnar" primarily describes the physical storage layout and optimization technique, which can be adopted by various database models, including relational and NoSQL. This clarifies that "columnar" is a storage technique that can be applied within different database models, rather than being a standalone database model itself, leading to a more sophisticated understanding of the database landscape.

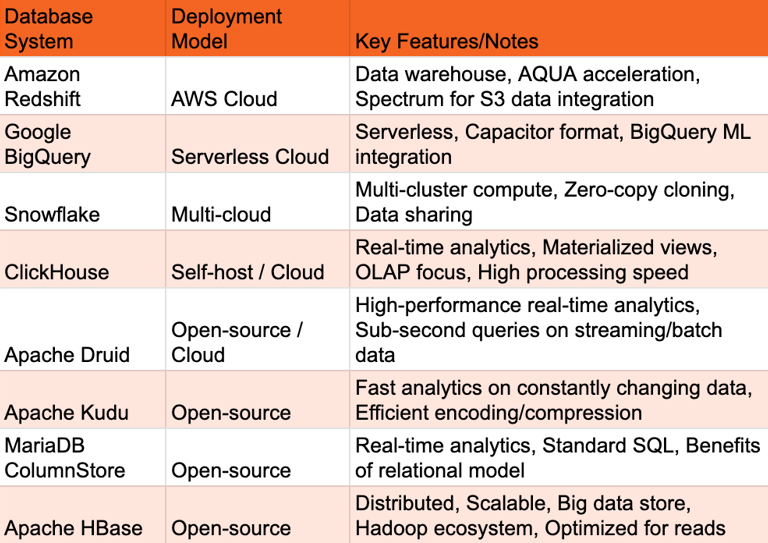

Prominent Columnar Database Systems and Their Characteristics

This table provides a concise overview of prominent columnar database systems, highlighting their deployment models and key distinguishing features. It serves as a valuable resource for technical decision-makers seeking to understand the current market landscape and identify suitable options for specific analytical requirements.

Alternative Database Solutions

While columnar databases are highly effective for analytical workloads, a comprehensive data strategy often involves considering other database types based on specific application needs.

When to Consider Traditional Row-Oriented Relational Databases

Traditional row-oriented relational databases, such as MySQL, PostgreSQL, and Microsoft SQL Server, remain the primary choice for general application development. Their strengths lie in Online Transaction Processing (OLTP) workloads. These systems are optimized for write-heavy operations, frequent inserts, updates, and deletes, which are characteristic of transactional applications like e-commerce platforms or banking systems. They offer strong ACID (Atomicity, Consistency, Isolation, Durability) properties, ensuring data integrity for critical transactions. Furthermore, row-oriented databases are versatile for general-purpose applications, capable of handling various data types and complex queries involving joins across multiple tables.

Overview of Other NoSQL Database Types and Their Suitability

NoSQL databases offer diverse data models and are beneficial for scenarios requiring flexible scalability and handling non-tabular or semi-structured data.

• Key-Value Databases: These databases store a single serialized object for each key value. They are well-suited for managing large volumes of data where retrieval is based on a specific key, without the need to query other item properties. Examples include Redis and Amazon DynamoDB.

• Document Databases: A type of key-value database where the values are documents, typically in formats like JSON or XML. They allow querying on non-key fields and defining secondary indexes to improve efficiency. Document databases are often optimal for write-heavy workloads involving semi-structured data from web and mobile applications, offering fast insertion and retrieval. Popular examples include MongoDB, Apache CouchDB, and Microsoft Azure Cosmos DB.

• Wide-Column Stores: These are a type of column store that organizes data into "column families." This allows for efficient reading of a single column family without scanning all data for an entity. They are frequently used for large analytical and operational workloads. Examples include Apache Cassandra, Apache HBase, and Google Cloud Bigtable.

• Graph Databases: These databases store information as a collection of objects (nodes) and their relationships (edges). They are highly efficient for performing queries that traverse networks of objects and the relationships between them, such as in social networks or recommendation engines.

• Telemetry and Time-Series Databases: These are append-only collections of objects, optimized for efficiently indexing, storing, and analyzing vast quantities of time-stamped data, making them ideal for monitoring systems and IoT applications.

There is a common misconception that "columnar" databases are inherently "non-relational" or fundamentally distinct from "relational" databases. However, this perspective overlooks a crucial distinction: columnar versus row-based storage techniques are independent of whether a database adheres to a relational model. It is entirely possible to have a "columnar store relational database" such as Amazon Redshift , or to implement columnar indexing within traditionally row-oriented relational databases like SQL Server. This understanding clarifies that "relational" describes the data model (tables, relationships, SQL), while "columnar" describes the physical storage optimization. A database can embody both characteristics, preventing miscategorization and allowing for more precise architectural discussions.

Discussion of Hybrid Transactional/Analytical Processing (HTAP) Engines

The emergence of Hybrid Transactional/Analytical Processing (HTAP) engines represents a significant evolution in database technology. HTAP solutions aim to combine the strengths of both OLTP and OLAP databases, allowing for both transactional and analytical workloads to be processed simultaneously on the same dataset. This approach seeks to provide real-time insights on operational data without the traditional need for separate systems or complex Extract, Transform, Load (ETL) processes. The existence of HTAP engines and the integration of columnar storage into relational databases signifies a broader trend in database evolution: moving beyond a strict OLTP/OLAP separation. This indicates that as businesses demand real-time analytics on their operational data, database vendors are developing solutions that blur these traditional lines, reducing the need for complex data pipelines and separate systems. This reflects a drive towards simplified data architectures that can serve diverse, often concurrent, workload requirements from a single platform, representing a significant shift from the traditional approach of pairing a row-oriented system with a column store.

Conclusion and Strategic Recommendations

The selection of a database system is a strategic decision that is not "one-size-fits-all" but must be driven by the specific characteristics of the workload. Columnar databases have established themselves as indispensable tools for modern data analytics due to their superior read performance, highly efficient data compression, and inherent scalability for large datasets. They are ideally suited for Online Analytical Processing (OLAP), business intelligence (BI), real-time analytics, machine learning feature stores, and IoT/time-series data analysis. However, their limitations with write-heavy transactional workloads, complexities in achieving strong ACID properties for OLTP, potential inefficiencies with high-projectivity queries, and overhead for small datasets must be carefully considered.

To effectively integrate columnar databases into a broader data strategy, several recommendations emerge:

• Adopt Hybrid Approaches: For organizations with mixed workloads, it is often optimal to pair columnar databases with traditional row-oriented databases. This allows each system to handle the workload for which it is best suited, maximizing overall performance. For instance, a retail application could record purchases in a relational database for transactional integrity and then stream that data to a columnar database for instant trend analysis and reporting.

• Leverage Cloud-Native Solutions: Given the increasing complexity of managing large-scale data infrastructure, exploring managed cloud services like Amazon Redshift, Google Cloud BigQuery, and Snowflake is advisable. These platforms offer significant advantages in terms of scalability, cost-effectiveness, and reduced operational overhead, allowing organizations to focus on data analysis rather than infrastructure management.

• Evaluate HTAP Engines: For scenarios demanding simultaneous transactional and analytical capabilities on the same dataset, evaluating Hybrid Transactional/Analytical Processing (HTAP) engines is a prudent step. These solutions aim to provide real-time insights on operational data without the need for complex data pipelines and separate systems, simplifying the data architecture.

• Prioritize Data Modeling Best Practices: Regardless of the underlying storage paradigm, adhering to robust data modeling best practices is paramount. A deep understanding of the data and its attributes is essential for effective schema design, ensuring efficient retrieval and analysis. While columnar databases handle data differently, principles such as consistent naming conventions, data security, and clearly defined relationships remain vital for overall data integrity and usability.

In conclusion, columnar databases are indispensable tools for modern data analytics, enabling organizations to derive deeper and more timely insights from ever-growing datasets. Their continued evolution, particularly in cloud environments and through the development of HTAP capabilities, solidifies their position as a cornerstone of data-driven innovation and a critical component in the strategic pursuit of competitive advantage.

FAQ

What is a columnar database and how does it differ from a traditional row-oriented database?

A columnar database, also known as a column-oriented database, is a specialised database architecture that stores data by columns rather than by rows. This means that all values for a particular attribute (column) are stored contiguously on disk. For example, if you have a table with CustomerID, Name, and Age, a columnar database would store all CustomerIDs together, then all Names, and then all Ages.

In contrast, a traditional row-oriented database stores each complete record—comprising all its fields—in one or more contiguous blocks. Using the same example, a row-oriented database would store CustomerID 1, Alice, 30 together as a single block. This fundamental difference in physical organisation is the bedrock of their respective efficiencies for different workloads.

What are the core architectural principles that contribute to the performance advantages of columnar databases?

The superior performance of columnar databases for analytical workloads stems from several synergistic architectural principles:

• Data Homogeneity and Compression: Each column typically contains data of the same type, enabling highly effective compression algorithms (e.g., dictionary encoding, run-length encoding, delta encoding). This reduces storage space and significantly speeds up data retrieval by minimising data read from disk.

• Late Materialisation: The system delays combining columns into a complete dataset until absolutely necessary for query processing. By operating on only the required columns for as long as possible, it minimises unnecessary data movement.

• Vectorised Query Execution: Columnar databases often process "vectors" or chunks of data simultaneously, leveraging modern CPU vector instructions (SIMD). This aligns perfectly with the columnar data layout, leading to more efficient CPU utilisation and faster query processing.

• Efficient Caching and I/O: Contiguous column storage allows for highly efficient cache memory utilisation, fetching adjacent and relevant data. Furthermore, selective column reading significantly reduces Input/Output (I/O) operations by skipping irrelevant data.

• Partitioning and Sharding: These strategies divide and distribute large datasets across multiple servers, enhancing query performance and overall scalability for petabyte-scale data volumes.

How do columnar databases specifically optimise for read-heavy analytical queries and data compression?

Columnar databases are engineered for read-heavy analytical queries by:

• Reduced I/O Operations: They only need to access and read the specific columns relevant to a query, ignoring vast amounts of irrelevant data. For example, in a query calculating the average salary, only the 'salary' and 'department' columns would be read, not the entire employee record. This drastically speeds up data access.

• Faster Query Performance: The reduced I/O and selective retrieval directly lead to significantly faster execution for complex analytical queries and aggregation functions across large datasets.

• CPU Cache Utilisation and SIMD Operations: The columnar layout aligns with modern CPU architectures, allowing for improved CPU cache performance and efficient vectorised processing, maximising CPU utilisation and speeding up calculations.

For data compression, columnar storage is "perfect" due to the inherent homogeneity of data within a single column. Identical or similar values are often adjacent, enabling high compression ratios. Techniques like Dictionary Encoding, Run-Length Encoding (RLE), Bit Packing, and Delta Encoding are highly effective. General-purpose compression algorithms further enhance efficiency. The benefits extend beyond storage saving; less data on disk means reduced I/O, accelerating queries and insertions, which typically outweighs the CPU overhead of decompression. In cloud environments, this efficiency also translates to lower query costs under usage-based billing models.

What are the primary use cases where columnar databases excel?

Columnar databases are ideal for scenarios demanding fast, efficient access to large datasets, particularly where query performance and storage efficiency are critical. Their primary use cases include:

• Data Warehousing & Business Intelligence (BI): They form the "foundation of modern data warehouses" and are a "smart choice" for powering interactive dashboards, generating ad-hoc reports, and serving as the backbone for cloud data warehouses, efficiently handling aggregations and queries across millions of rows.

• Real-Time Analytics: Many columnar systems are optimised for real-time or near-real-time data ingestion and querying, enabling sub-second queries on streaming and batch data at scale. This is crucial for applications requiring immediate insights, such as monitoring, user behaviour analytics, and alerting.

• Machine Learning Feature Stores: They facilitate quick retrieval of single-column vectors, essential for efficient model training and data preprocessing tasks by data scientists. The columnar format streamlines data preparation for ML workflows.

• IoT & Time-Series Analytics: Columnar storage is exceptionally well-suited for handling Internet of Things (IoT) and time-series data (logs, metrics, financial records). The sequential nature of time-series values allows for highly effective compression and delta encoding, enabling efficient scans over specific columns like temperature or voltage.

What are the limitations of columnar databases, and when should they not be used?

Despite their analytical strengths, columnar databases have limitations that make them unsuitable for certain use cases:

• Write-Heavy Workloads (Inserts/Updates): They are less efficient for frequent inserts, updates, and deletes of individual records. Inserting a new record requires writing each field to its respective column, consuming more resources than a single operation in a row-oriented database. Updates are also slower as they necessitate modifying multiple locations.

• Transaction Handling (ACID Properties) for OLTP: Achieving full ACID (Atomicity, Consistency, Isolation, Durability) properties across many separate column files can be costly and complex. Consequently, they are generally not suitable for Online Transaction Processing (OLTP) applications, which demand strong transactional consistency for frequent, small writes. Row-oriented databases are recommended for "hot operational data."

• Inefficiencies with High-Projectivity Queries (SELECT ): When a query requires retrieving all columns from a table (e.g., SELECT ), the data must be reassembled from various column files. This reassembly process can be inefficient and diminish performance advantages.

• Small Datasets: For small datasets, the overhead associated with compression and the specialised columnar architecture may outweigh the benefits, making lightweight row stores a more efficient solution.

• CPU Resource Consumption: They may consume more CPU resources when processing data not naturally suited to their columnar storage, such as highly unstructured data.

These limitations underscore that database selection always involves a trade-off, necessitating a deep understanding of workload characteristics and the prioritisation of specific performance goals.

Can you name some leading examples of columnar database systems available today?

The landscape of columnar database systems includes both cloud-native managed services and self-hosted open-source options:

Cloud-Native Managed Services:

• Amazon Redshift: A leading cloud data warehouse from AWS, designed for analytical workloads on big datasets, with features like sort keys and AQUA acceleration.

• Google Cloud BigQuery: A fully managed, serverless enterprise data warehouse known for scalability, cost-effectiveness, and rapid processing using its proprietary Capacitor format, integrating seamlessly with machine learning (BigQuery ML).

• Snowflake Data Cloud: A multi-cloud data platform offering multi-cluster compute, zero-copy cloning, and robust data sharing capabilities across various cloud environments.

Open-Source & Other Enterprise Options:

• ClickHouse: An open-source, column-oriented DBMS specifically designed for fast real-time analytics, known for high reliability and processing hundreds of millions of rows per second per server.

• Apache Druid: A high-performance real-time analytics database delivering sub-second queries on both streaming and batch data at scale.

• Apache Kudu: An open-source distributed data storage engine engineered for fast analytics on constantly changing data, using efficient encoding and compression.

• MariaDB ColumnStore: An open-source column-based storage engine for MariaDB, enabling real-time analytics using standard SQL.

• Apache HBase: A distributed, scalable, column-oriented NoSQL database built atop Hadoop's HDFS, optimised for read performance on massive datasets.

• Other Enterprise Options: OpenText Vertica, SAP HANA, and IBM Db2 Warehouse.

It's important to note that "columnar" primarily describes the physical storage layout and optimisation technique, which can be adopted by various database models, including relational (e.g., Redshift, MariaDB ColumnStore) and NoSQL (e.g., HBase, Bigtable).

What alternative database solutions exist, and when would they be a better choice than a columnar database?

A comprehensive data strategy often involves considering other database types for specific application needs:

• Traditional Row-Oriented Relational Databases (e.g., MySQL, PostgreSQL, SQL Server): These are the primary choice for Online Transaction Processing (OLTP) workloads. They excel at write-heavy operations, frequent inserts, updates, and deletes, characteristic of transactional applications (e.g., e-commerce, banking). They offer strong ACID properties, ensuring data integrity, and are versatile for general-purpose applications with complex queries involving joins.

• NoSQL Database Types: These offer diverse data models for flexible scalability and handling non-tabular or semi-structured data:

• Key-Value Databases (e.g., Redis, Amazon DynamoDB): Best for managing large volumes of data where retrieval is based on a specific key without needing to query other properties.

• Document Databases (e.g., MongoDB, Apache CouchDB): Optimal for write-heavy workloads with semi-structured data from web/mobile applications, offering fast insertion and retrieval and allowing queries on non-key fields.

• Wide-Column Stores (e.g., Apache Cassandra, Apache HBase, Google Cloud Bigtable): Organise data into "column families," allowing efficient reading of a single family. Frequently used for large analytical and operational workloads.

• Graph Databases (e.g., Neo4j, Amazon Neptune): Highly efficient for queries that traverse networks of objects and their relationships, common in social networks or recommendation engines.

• Telemetry and Time-Series Databases (e.g., InfluxDB, TimescaleDB): Append-only collections optimised for efficiently indexing, storing, and analysing vast quantities of time-stamped data, ideal for monitoring and IoT applications.

It's crucial to understand that "columnar" describes a storage technique, while "relational" describes the data model. A database can embody both characteristics.

What is Hybrid Transactional/Analytical Processing (HTAP), and why is it important in the context of database evolution?

Hybrid Transactional/Analytical Processing (HTAP) engines represent a significant evolution in database technology. HTAP solutions aim to combine the strengths of both OLTP (transactional) and OLAP (analytical) databases, allowing for both types of workloads to be processed simultaneously on the same dataset.

This approach seeks to provide real-time insights directly from operational data without the traditional need for separate systems or complex Extract, Transform, Load (ETL) processes that move data between an OLTP database and a separate OLAP data warehouse.

The emergence of HTAP engines, alongside the integration of columnar storage into traditionally row-oriented relational databases (e.g., SQL Server's clustered columnstore indexes), signifies a broader trend in database evolution: moving beyond a strict OLTP/OLAP separation. This is important because businesses increasingly demand real-time analytics on their operational data. HTAP addresses this by blurring traditional lines, reducing the need for complex data pipelines and separate systems. It reflects a drive towards simplified data architectures that can serve diverse, often concurrent, workload requirements from a single platform, representing a significant shift from the traditional approach of pairing different database types for different workloads.
